Features
- Full Carbon Fibre Frame
- 12 kg (without battery) / 13.5 kg (with battery) – One of the lightest power chairs in its class
- 136 kg Weight Capacity

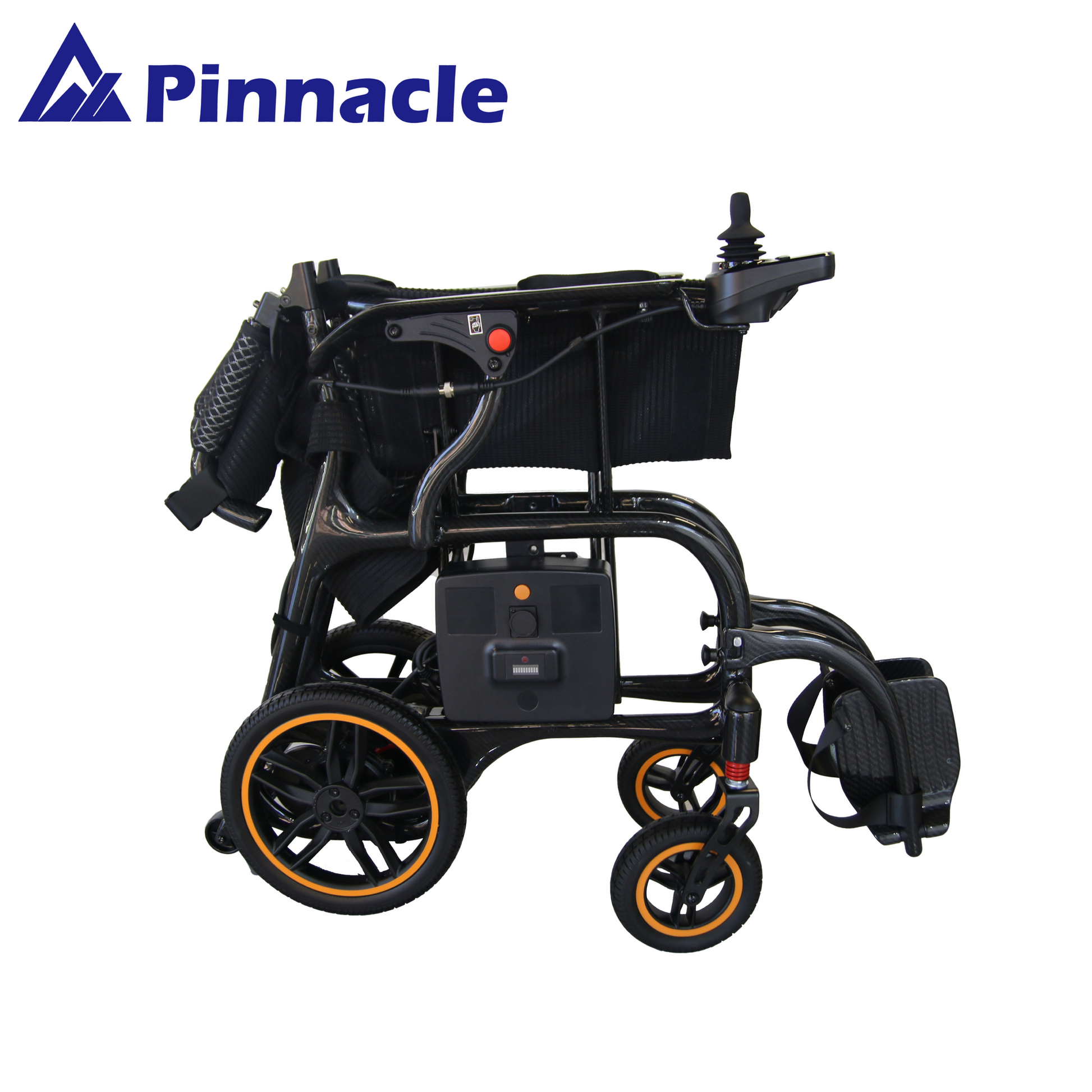

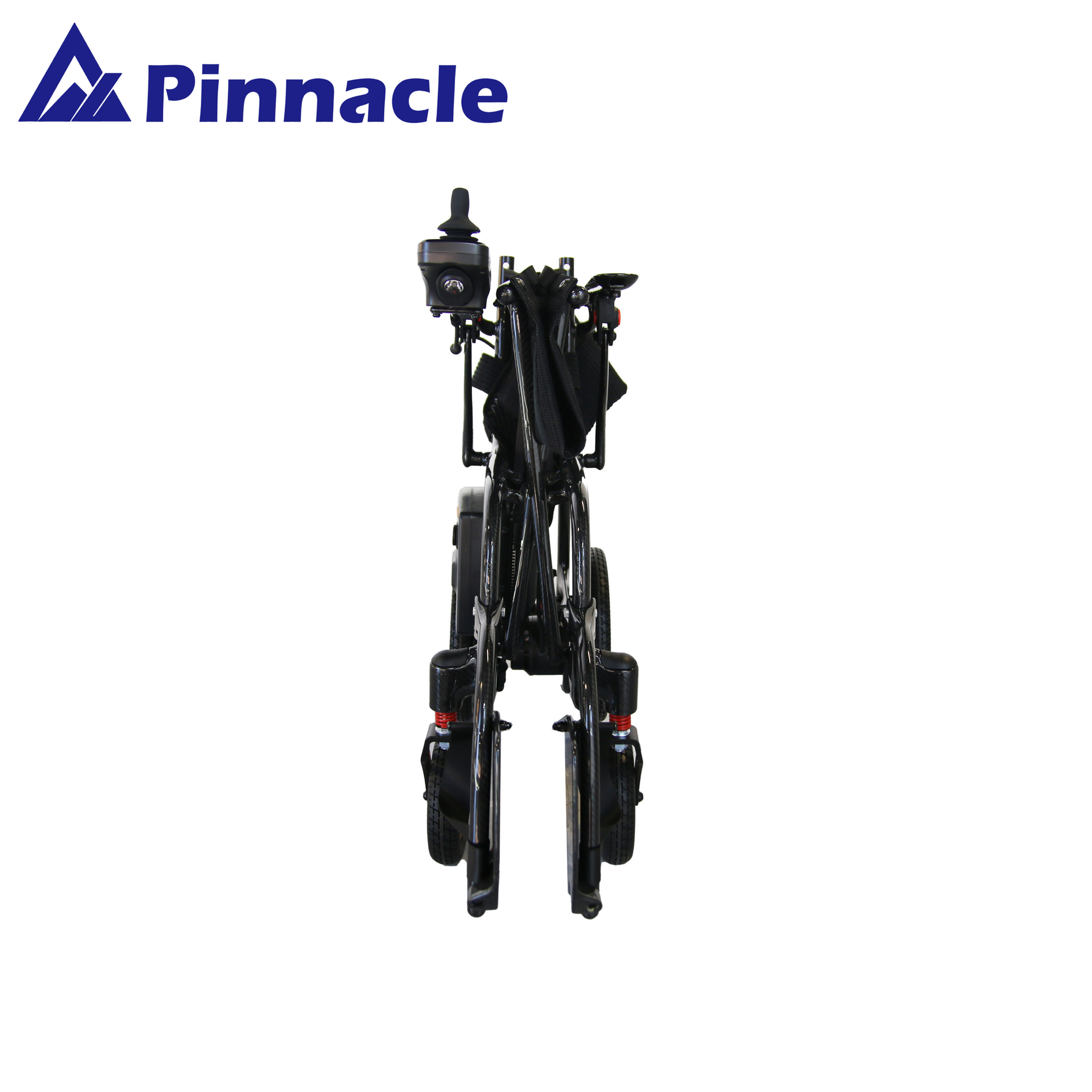

- Compact Folding Design
- Flip Back Armrests & Foldable Backrest
- Detachable or Flip Up Footrest

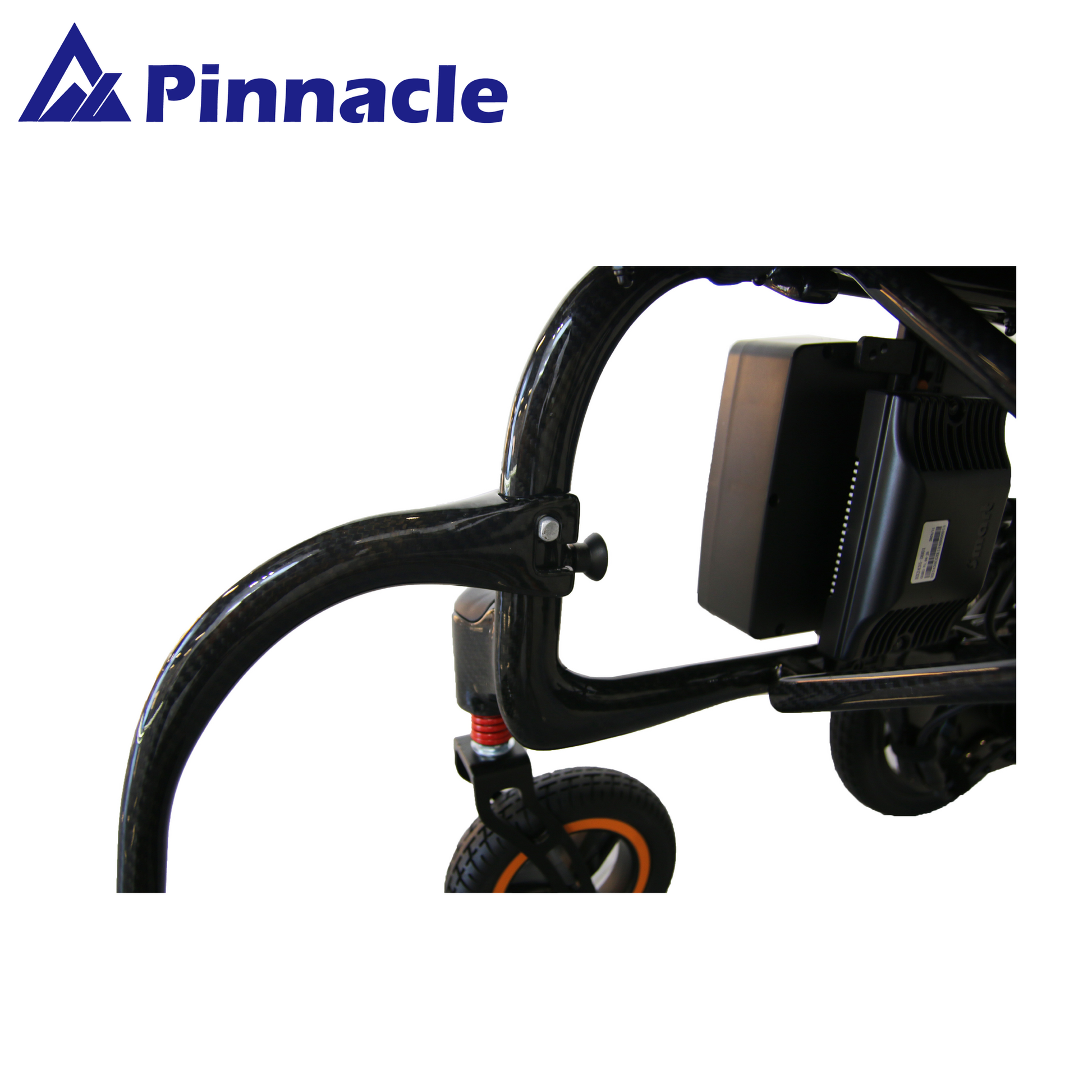

- Removable Battery System
- Multiple Battery Options
- Wireless Remote & Rear Attendant Controller
- Optional Comfort Cushion Upgrade
Durability & Testing Standards
- 300,000 motor endurance test cycles under 136 kg load
- 300,000 frame fatigue test cycles under 136 kg load
- 220,000 backrest push test cycles
Specification
| Specification |
Details |
| Frame Material |
Carbon Fibre |
| Overall Dimensions (L × W × H) |
860 × 600 × 900 mm (±10 mm) |
| Folded Dimensions (L × W × H) |
630 × 260 × 700 mm (±10 mm) |
| Seat Size (W × D) |
430 × 400 mm (±10 mm) |
| Seat Height |
490 mm (±10 mm) |
| Backrest Height |
400 mm (±10 mm) |
| Armrest Height |
360 mm (±10 mm) |
| Footrest to Seat Distance |
420–445 mm (±10 mm) |

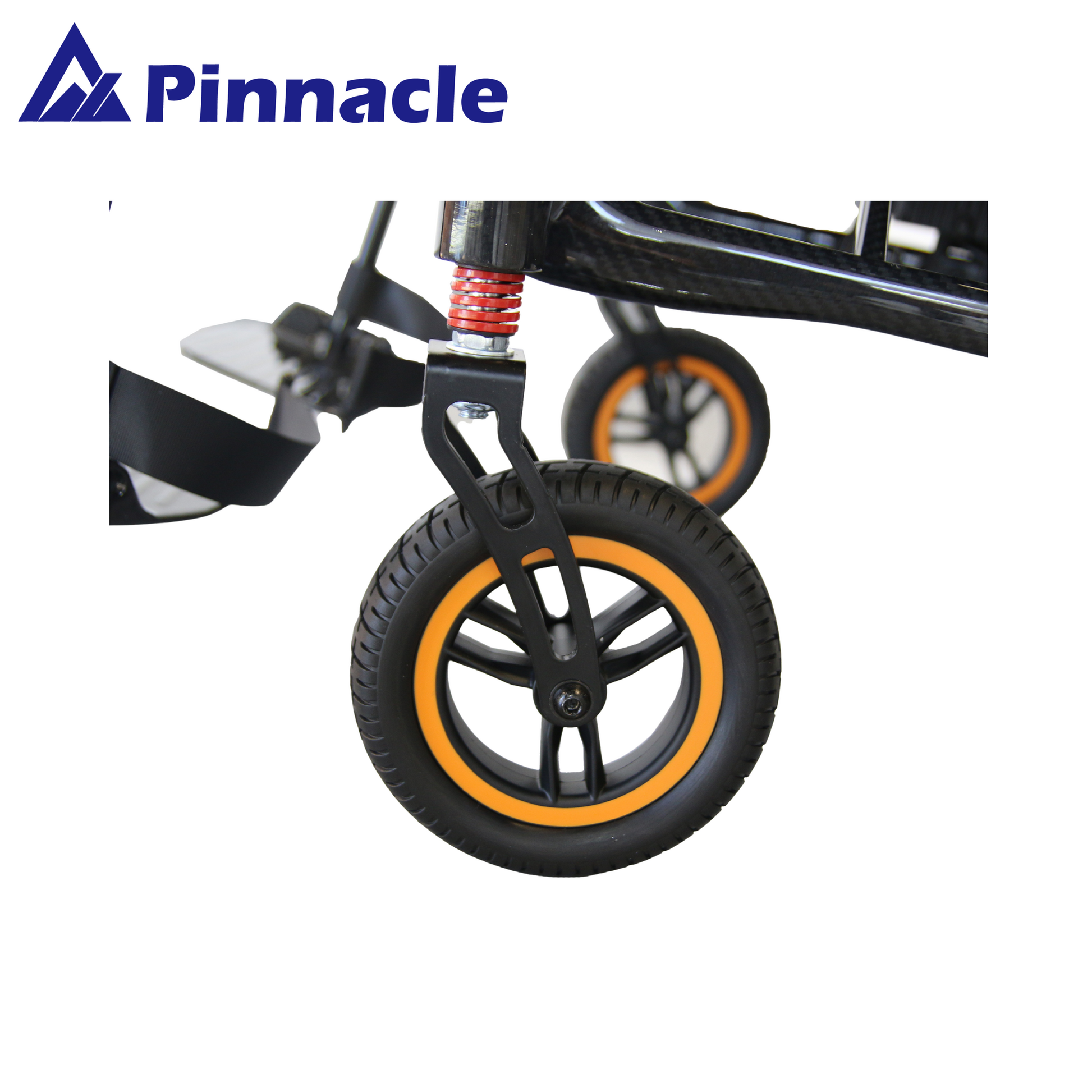

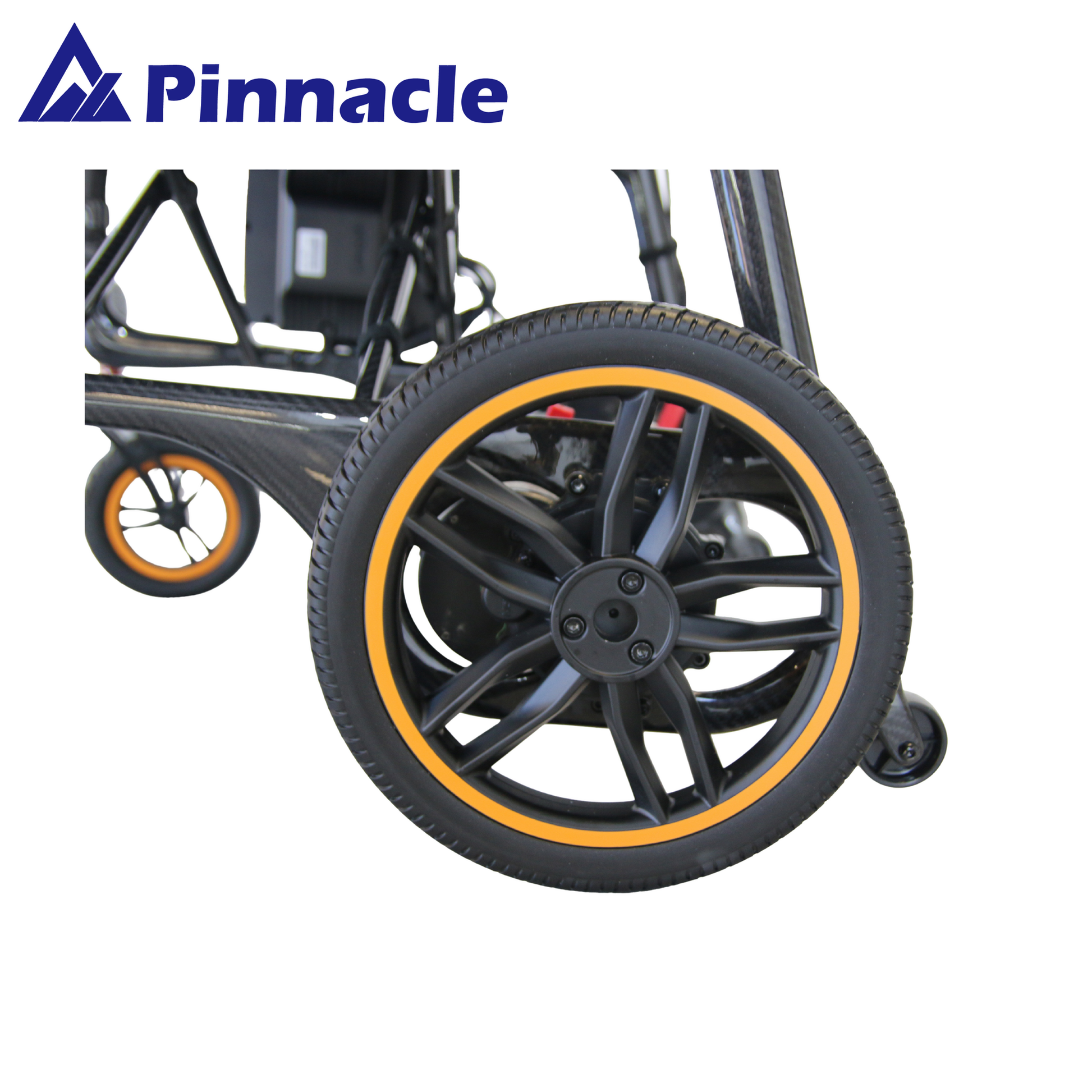

| Wheel Size |
6.5″ Front, 12″ Rear |
| Turning Radius |
≤ 1800 mm |
| Obstacle Clearance |
≥ 25 mm |
| Ditch Crossing Width |
100 mm |
| Maximum Speed |
≤ 4.5 km/h |
| Driving Range |
Up to 15 km |
| Climbing Capacity |
≥ 3° |
| Slope Stay Capacity |
8° |
| Static Stability |
≥ 6° |
| Dynamic Stability |
≥ 3° |
| Brake Distance (Horizontal) |
≤ 1.0 m |
| Brake Distance on 3° Slope |
≤ 1.6 m |
| Seat Angle |
4° (Ergonomic) |
| Backrest Angle |
12° |
| Footrest Angle |
100° |
| Motor |
2 × 150 W Brushless Motors with Electromagnetic Brake |
| Battery |
24 V 10 Ah Lithium Battery |
| Net Weight |
13.7 kg |
| Key Part Weight |
11.5 kg |
| Maximum Load Capacity |
136 kg |
